Product Name:
Hot Press Machine
Price:
$46,000.00
Size:
Material:
Port:
Qing Dao
Glue:
Place of Origin:
Shandong, China
MOQ:


Detailed introduction

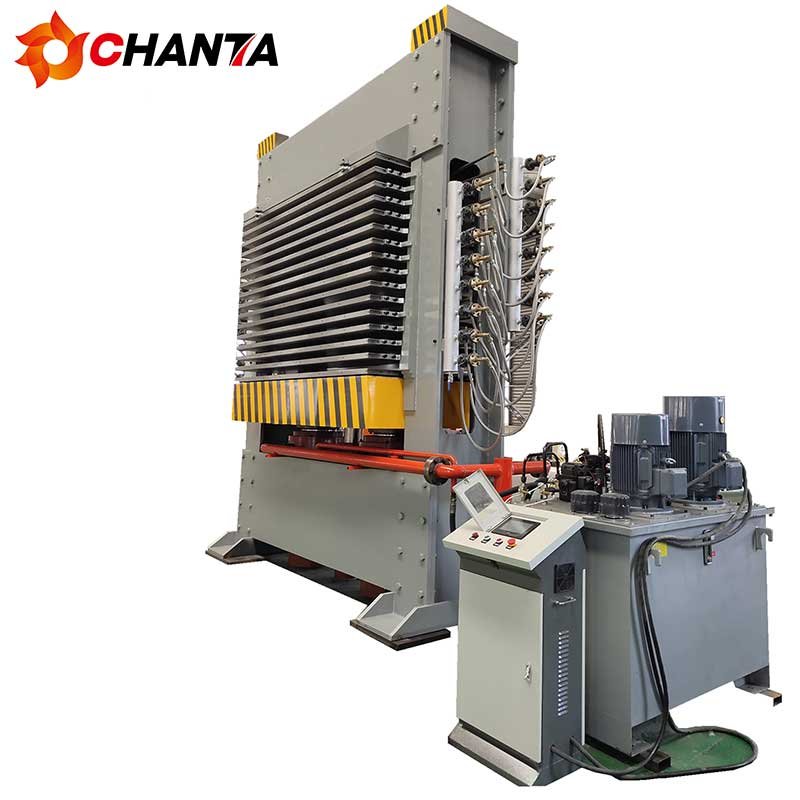

Plywood hot press machine can be used for producing plywood, blockboard, wood veneer and melamine paper lamination on plywood, blockboard and film faced plywood. We have different tons, layers of hot press for you to choose, we provide you with customized services, to provide you with the most suitable products.


Model

YQHP4X8/500/15

Max pressure

500 Tons

Board feeding direction

Transverse

Layers

15Layers

Layer spacing

70mm

Number of hot press plate

16pcs

Hot press plate size

2700*1370*42mm

Cylinder

2*ø360mm*1050mm


1180mm*1050mm

Stroke

1050mm

Compression resistance

≤25 Mpa

Total Power

7.5KW+18.5kw

Low pressure pump flowing

250ml/r*1pcs

high pressure pump flowing

10ml/r*1pcs

Overall dimension

3550mm*1370mm*4650mm

Working methods

Full

Composite frame

Assembled

Upper and bottom beam

900mm

Middle beam

400mm

Thickness of the frame

35 mm

Weight

About 33Tons

hot press machine
