Position： HOME > PRODUCTS > STRUCTURAL PLYWOOD
Product Name: 2269 Plywood
Size: 1220*2440mm
Thickness: 2.0-25mm
Moisture: Below 16%
Glue:E0,E1,E2,MR,MELAMINE WBP,PHENOLIC WBP.
About us:

　 Chanta Group is your plywood manufacturer in China which can produce customized products with professional technology.
Our mission is endless innovation,providing customers with high quality products and services





Detailed introduction



Our structural plywood meets the AS/NZS2269:2012-Plywood Structural inspection standard. We have a Benchmark certificate. All our structural plywood finished sheets meet the following requirements:

(A) The veneer shall not be attacked by rotting and active insects

(B) Any 300 mm long line drawn anywhere on the plywood, knot aggregate size, edge gaps, cracks, holes, plaques, bark and inappropriate resin bags, glial veins and inactive decay The gap in the area should not exceed the following:

(1) Quality A and B cork veneer... .... ..... 75 mm.

(2) For quality A and B hardwood veneer... ..... 45 mm.

(3) Quality S, C and D cork veneer... .... 120 mm.

(4) Quality S, C and D hardwood veneer...................75 mm.


Product Specifications


Conventional Data:Size:1220*2440mm/1250*2500mm/915*1830mm etc, as customer's demand
Thickness:7mm,9mm,12mm,15mm,18mm,21mm,24mm etc, as customer's demand
Core:Poplar,Hardwood,Combi etc
Glue:Phenolic ,Melamine WBP, MR
Film:Dynea brown film, black, red etc
Grade:AAA first class
Moisture:<12%
Thickness Tolerance:(+/-)0.5mmequal to and more than 12mm
(+/-)0.3mmless than 12mm
Physical Parameters:Density:520-650g/cbm
Modulus of rupture:>30Mpa
modulus of elasticity:>6000Mpa
Standards:Plywood grading standard for USA&Eu orders
Export Standard PackingInnerpallet lined with 0.2mm plastic bag
Outeroutside covered with carton then steel strip for strength, the botto with regenerative wood pallet
Loading Quantity:20'GP8 pallets/12000kgs/21.43m3
40'GP16 pallets/24000kgs/42.87m3
40'HQ18-19 pallets/28500kgs/50m3
Delivery Time:15 days after receiving the deposit or the original L/C from our bank
Payment Terms:T/T, L/C at sight
Capacity:9000 M3/ Month
Certificate:CE, CARB, FSC,ISO9001,ISO14001,AS/NZ 2269

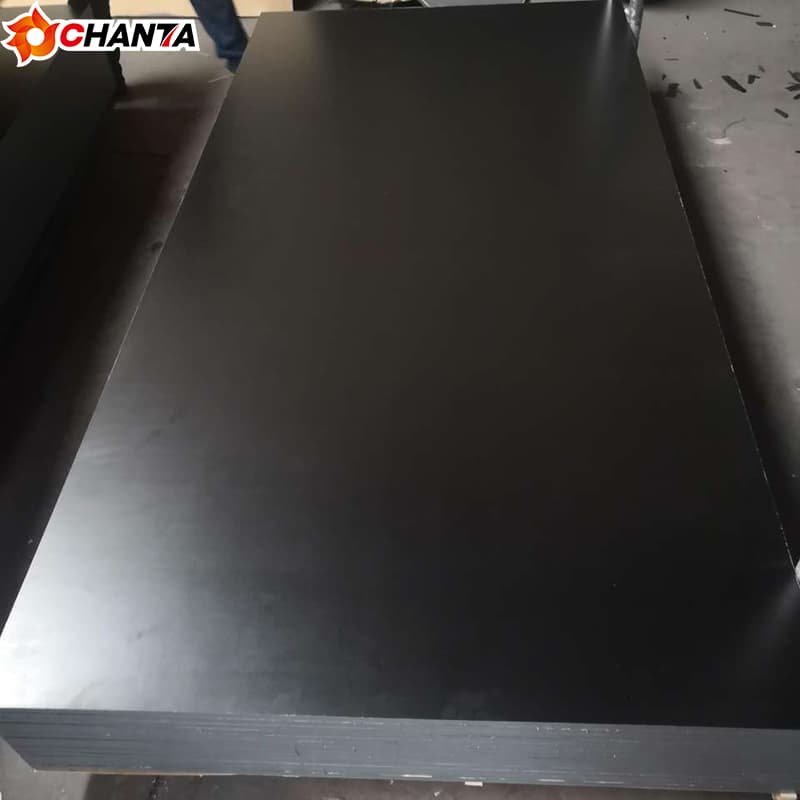

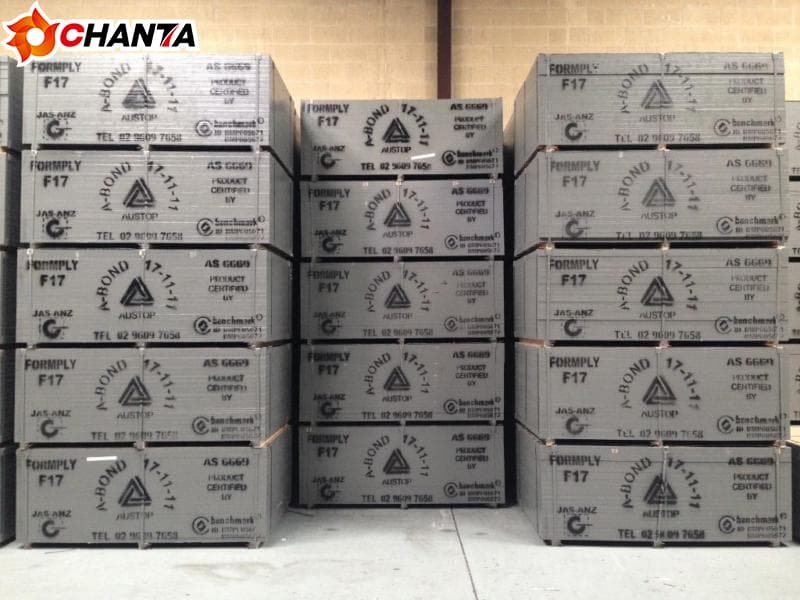

Product Images


2269 Plywood2269 Plywood
