What is Chantaplex Film Faced Plywood?
There are four types of Film Faced Plywood produced by CHANTA, with brand LORDPLEX(FULL HARDWOOD CORE),CHANTAPLEX(POPLAR AND HARDWOOD COMBI CORE),ROCKMARINE(FULL POPLAR CORE) and BUILDPLEX (RECYCLE CORER) respectively.These Four Types of Film Faced Plywood correspond to different grades and prices. Each Type of Film Faced Plywood has its own unique characteristics and usage occasions. Customers can choose different plywood according to their needs.Chantaplex film faced plywood (combi core)is using WBP Melamine Glue,Brown/Red Film ,18mm*1220*2440 Size as your requirement.
Product Specifications
Product | CHANTAPLEX FILM FACED PLYWOOD | Species: | COMBI |
Size: | 18mmx1220x2440 | Glue: | WBP |
Film: | BROWN | Grammage: | 180g/㎡ |
Sr.
No. | Property | Unit | Test
Method | Value of
Test | Result |
⒈ | Moisture Content | % | EN 322 | 10% | Check out |
⒉ | Density | kg/cbm | EN 323 | 580 | Check out |
⒊ | Bonding
Quality | Bonding
Quality | Mpa | EN 314 | Max: 1.37 | Check out |
|
| Damage Rate | % | ----- | 65% |
|
⒋ | Bending
Modules
of
Elasticty | Longitudinal | Mpa | EN 310 | 6800 | Check out |
|
| Lateral |
|
| 5200 |
|
⒌ | Bending | Longitudinal | Mpa |
| 48.3 | Check out |
| Strength |
|
|
|
|
|
| N/mm | Lateral |
|
| 35.7 |
|
⒍ | Cycle Life | About 6~10 Repeated Using times According |
|
| Projectes by formwork Application |

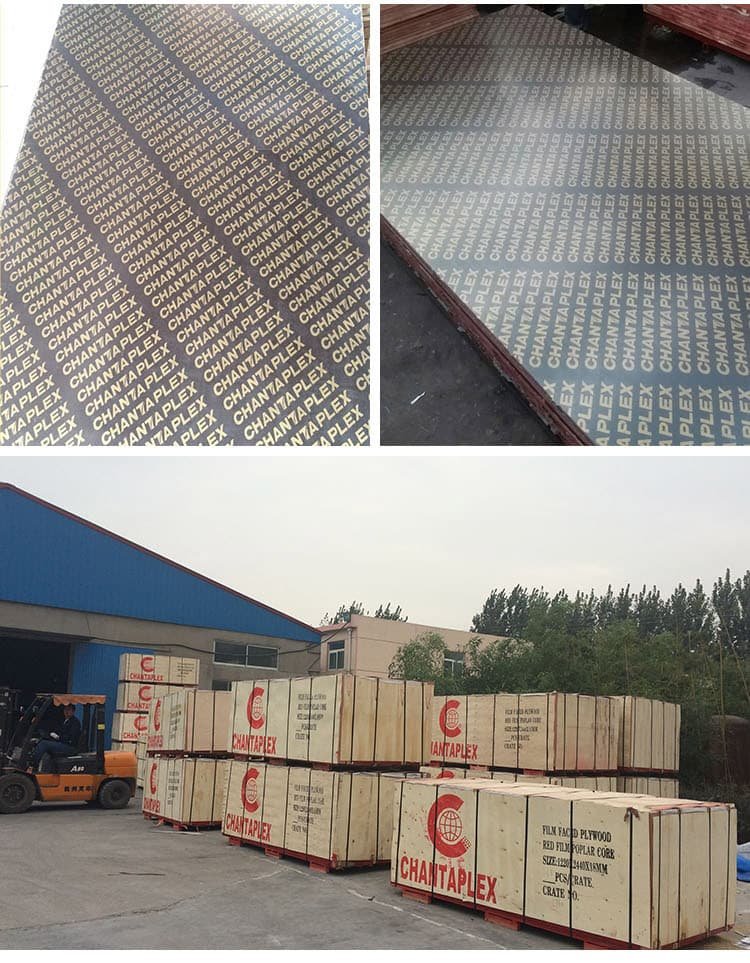

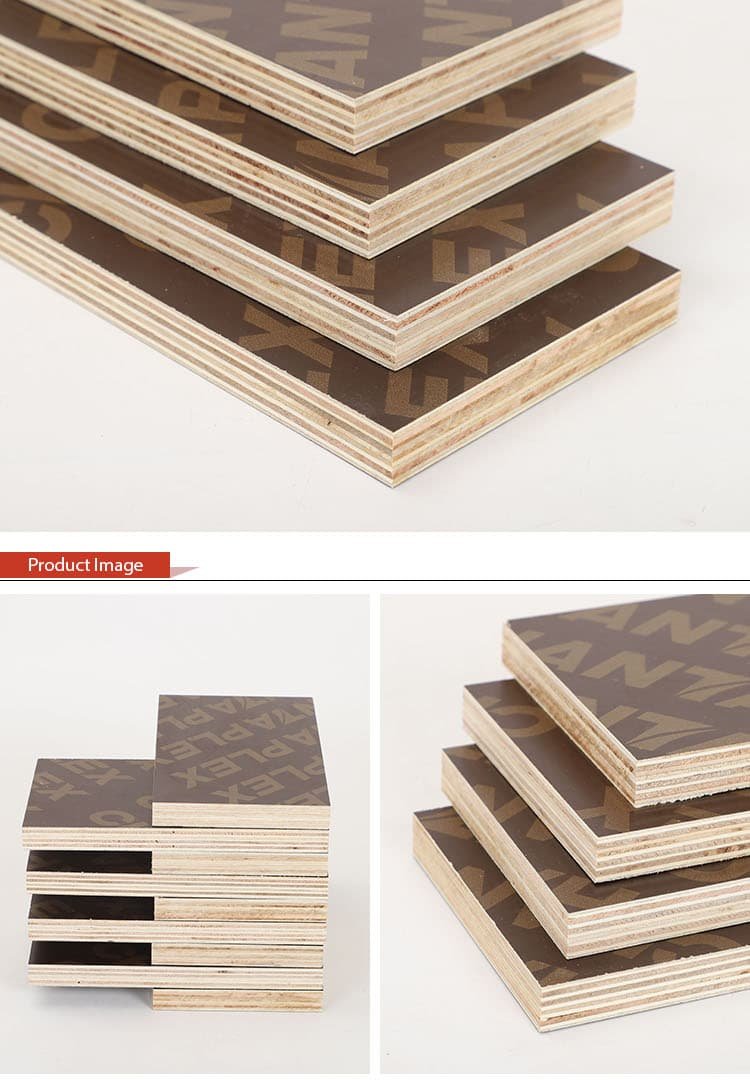

Product Images
